Project Specs
| Sidebar Data | Specification Details |
| Focus Area | Premium Wearables & Connected Consumer Hardware |
| Core Disciplines | Embedded Mechatronics Redesign, High-Precision DFM/DFA, BOM Restructuring, Arena PLM Migration, Far-East Contract Manufacturer (CM) Management |
| Production Intent | High-Volume Overseas Injection Molding & Electroplating Tooling |
The Challenge: A Collision of High-Fashion Aesthetics and Deep-Tech Constraints

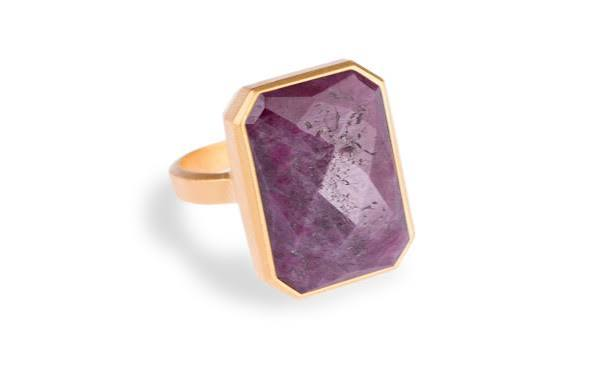

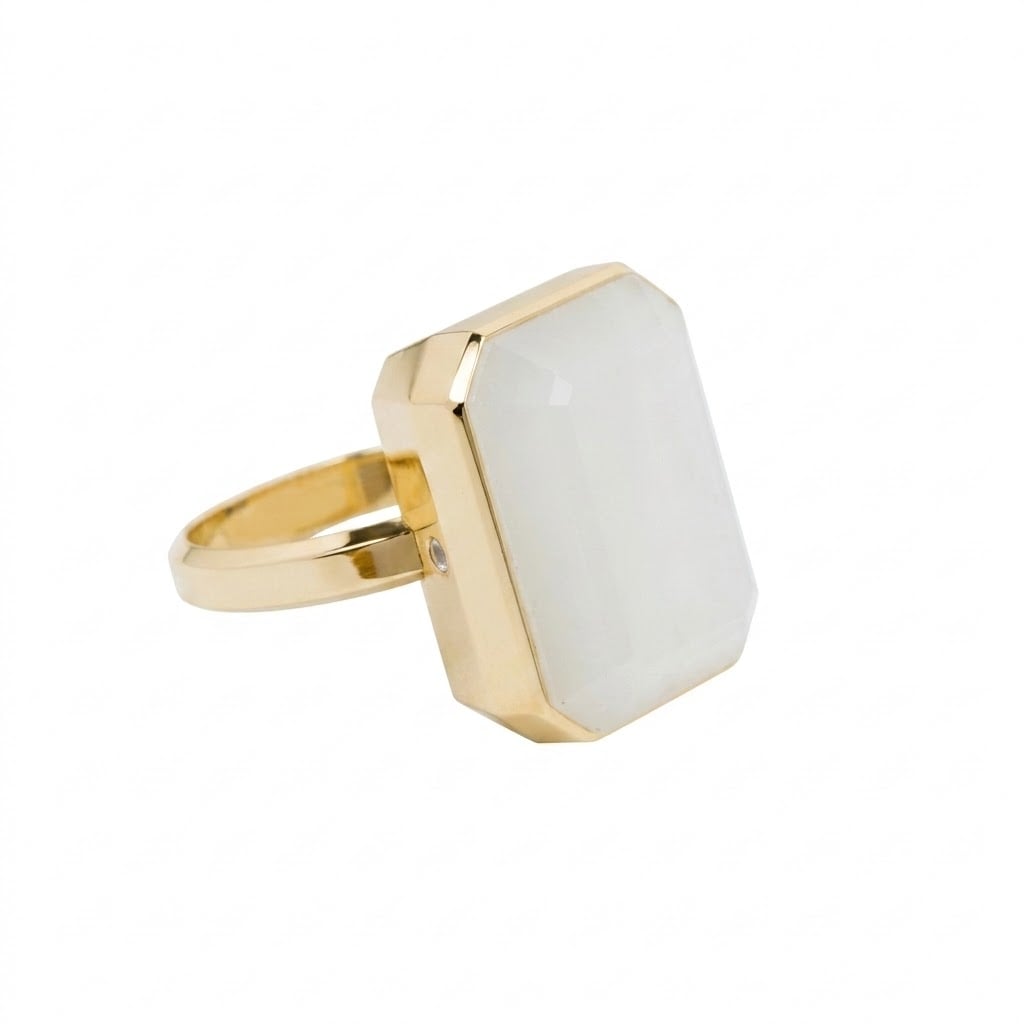

When a pioneering smart jewelry startup approached Swope Design Solutions (SDS), they were facing a critical operational bottleneck during their scale-up phase. Their flagship product line—which packed a custom battery, vibration motor, Bluetooth Low Energy (BLE) antenna, and a multi-layered PCB inside a tiny, fashion-forward ring—was suffering from severe yield dropouts at the factory and unexpected field failures. Our hardware development services were utilized because the consumer electronics department within the client’s team was overwhelmed by these technical hurdles.
A rigorous audit of the initial production files and return logs revealed two critical failure modes threatening their mass-market expansion:
- Electronics & Power Pathway Fallout: A significant percentage of early field returns were tied directly to power and connectivity failures rooted in the internal housing layout. Under physical assembly pressures, the battery subassembly experienced erratic contact and compression.
- Depressed Manufacturing Yields: The mechanical components were plagued by low yields. The structural ring base manufacturing suffered from sub-70% pre-plating acceptance rates, primarily driven by handling scratches and chronic over-solder defects during manual component mating. Concurrently, cosmetic gemstone integration faced double-digit fallout due to stone cracking and alignment shifting under standard press-fit stresses.
The client needed an elite mechanical engineering partner to embed with their team, rescue the stalled hardware design, clean up their technical documentation infrastructure, and physically shepherd the product line into predictable, high-volume production.
The Engineering Strategy: Driving Velocity through Rigorous DFM
SDS deployed a multi-phase mechanical and manufacturing engineering strategy over a 16-month engagement, bridging the technical gap between the client’s domestic electrical engineers and their overseas supply chain. Our approach to technology development centered on direct integration with the client’s consumer electronics department to align hardware specs with manufacturing reality.
Phase 1: Subsystem Architecture & Rigorous Clearance Simulation
Instead of relying on generic product guesswork, the SDS team functioned as an embedded extension of the client’s internal organization, systematically attacking the root causes of mechanical failure:
- Power & Inner Housing Overhaul: We collaborated closely with the internal electrical engineering team to completely redesign the inner housing geometry. This optimized the tight spatial constraints to safely accommodate the upgraded battery subassembly and robust power division circuit paths without risking component pinching.
- Eliminating Structural Variance: To solve sizing variances where production rings deviated from strict sizing guides, SDS standardized tolerance protocols for the ring-to-gemstone interface, optimizing the bezel ledge geometry to isolate fragile stones from manufacturing stresses and guarantee a “true to size” fit.
- Enterprise Infrastructure Migration: To eliminate the chaos of tracking critical components via scattered spreadsheets, SDS modernized the client’s Bill of Materials (BOM) and Product Lifecycle Management (PLM) architecture, migrating the entire system into Arena PLM software to enforce strict revision and release controls among the various manufacturing and supply chain partners.
Phase 2: Fab Lab Iteration & Real-Time Production Ramp-Up
Leveraging the tight loop between engineering and physical tools, SDS utilized our in-house prototyping and machining assets to validate design changes instantly, compressing iteration cycles from weeks to days.
- Advanced Tooling & Plating Engineering: To mitigate high fallout caused by manual soldering and handling scratches, SDS engineered and machined custom assembly and tumbling fixtures in-house. We researched and specified advanced electroplating techniques—including direct gold-on-stainless-steel cathodic electrolysis with nickel-strike buffer layers—to eliminate plating diffusion and structural tarnish.
- On-the-Floor Supply Chain Stabilization: Once the mechanical subsystems were validated, SDS didn’t just hand over the data package; our engineers physically traveled to the manufacturing facilities in Shenzhen, China. SDS provided on-site support through EVT & DVT phases, debugging lines in real time, holding stone cutters to strict rejection tolerances, and stabilizing the mass-production workflow.
- Portfolio Expansion: In parallel with ring optimization, SDS utilized our agile development process to design, prototype, and test an entirely new smart bracelet line and low-profile magnetic charging enclosures to expand the client’s market footprint.
The Outcome & Technical Validation
Through this intense engineering intervention, Swope Design Solutions successfully course-corrected the product’s design and supply chain vulnerabilities without requiring the client to sustain the permanent overhead of an internal, full-time mechanical engineering division. Our hardware development services ensured success throughout the transition.
- Successful High-Volume Transition: SDS securely transferred the refined product line to a Tier-1 contract manufacturer in Asia, guiding the dense mechatronic assembly through successful PVT runs.
- Yield Optimization: The implementation of SDS-machined assembly fixtures, automated tumbling processes, and optimized stone-holding geometry minimized cosmetic fallouts, pushing manufacturing yields past target thresholds.
- Field Reliability Secured: Overhauling the internal spatial layout and securing the battery clearance path systematically wiped out the mechanical shorts and connectivity dropouts that had previously driven field returns.
Technical Takeaway
“Premium wearables cannot survive on beautiful industrial design alone. By redesigning the product from the inside out, building verifiable and repeatable processes in-house first, and embedding engineers directly onto the factory floor during EVT, SDS and the Ringly team successfully bridged the gap between high-fashion aesthetics and absolute manufacturing predictability.”
— Brett Swope, Principal Mechanical Engineer
